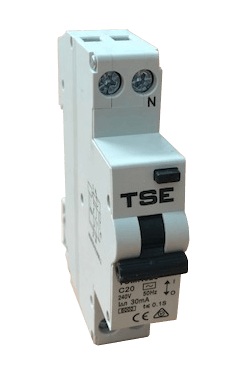

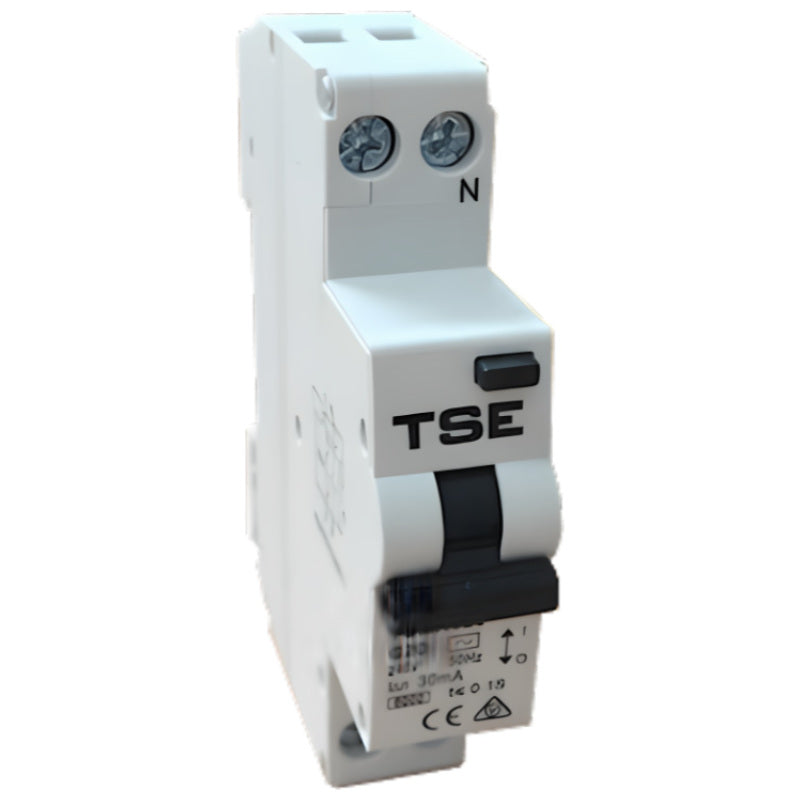

Residual Current Breaker with Overcurrent Protection (RCBO) 20A – 4.5kA, 30mA Trip (TSE)

Residual Current Breaker with Overcurrent Protection (RCBO) 20A – 4.5kA, 30mA Trip (TSE)

A combined circuit protection device that integrates both miniature circuit breaker (MCB) and residual current device (RCD) functions. The RCBO provides overload and short‑circuit protection while also safeguarding against earth leakage faults, making it ideal for residential and light commercial installations.

Features:

• Rated current: 20 amps
• Interrupt capacity: 4.5 kA
• Residual operating current: 30 mA (earth leakage protection)
• Configuration: 1P+N (single pole plus neutral)
• Voltage rating: 240 V AC
• DIN rail mount for quick installation
• Complies with AS/NZS 61009.1 standards
• Provides combined overload, short‑circuit, and earth leakage protection
• Manufactured to OEM standards for durability and safety
