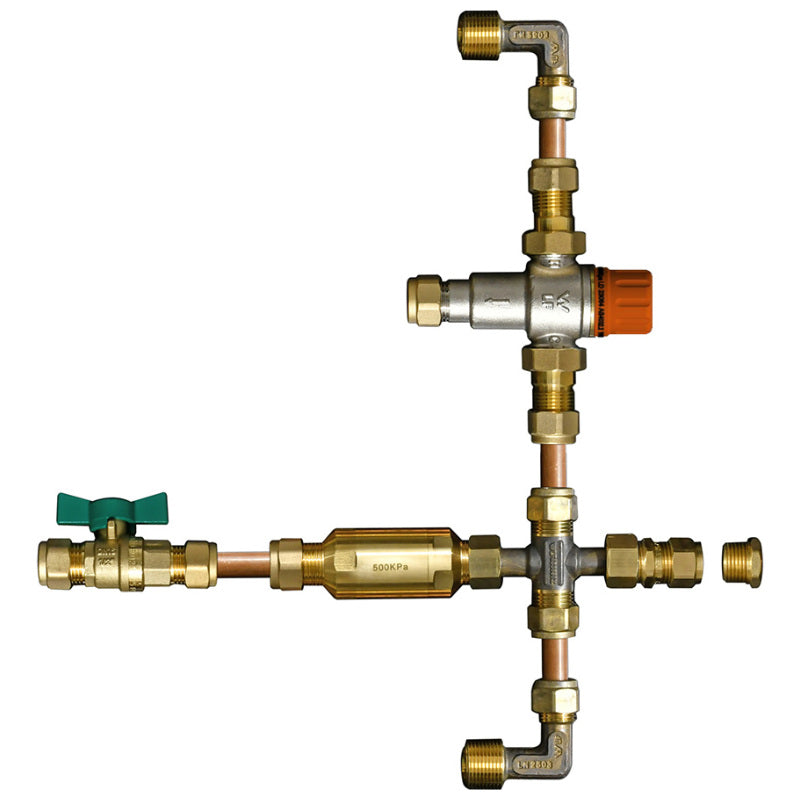

FitQuik Storage Hot Water Installation Kit 500kPa (Insulated) High Performance

FitQuik Storage Hot Water Installation Kit 500kPa (Insulated) High Performance

The FitQuik High Performance 500kPa Hot Water Installation Kit provides a complete, insulated solution for connecting storage hot water systems operating at a regulated 500kPa supply pressure. Designed for enhanced flow stability and improved thermal control, this kit helps maintain system efficiency, reduce heat loss and ensure a clean, compliant installation.

Suitable for new installations or replacements, it delivers a durable, long‑lasting setup for domestic hot water units requiring high‑performance tempering and pressure‑limiting components.

1 × AW419LF Tee Swivel Nut 15FI × 15FI × 15C × 15C (Lead Free)
2 × AW4142LF Copper Compression Elbow Reducing Extended 20MI × 15C BR (Lead Free)
1 × ICDFC15OEM PU Cover to Suit DFC
1 × ICP15OEM PU Cover to Suit PLV
1 × PLV15C‑500LF Pressure Limiting Valve 500kPa 15mm C × C (Lead Free)
1 × TV15HPLF Tempering Valve 15mm High Performance (Lead Free)
1 × WDFC15LF Dual Isolation Non‑Return Ball Valve with Check Valve, Copper Compression (Lead Free)
1 × AW722LF Hexagonal Plug Brass 15mm BSPP (Lead Free)
2 × AW2110NBLF Copper Compression Union 15MI × 15C (Lead Free)

Features:

• Complete high‑performance installation kit for 500kPa storage hot water systems
• Enhanced flow stability and thermal control
• Helps reduce heat loss for improved efficiency
• Designed for fast, clean and compliant installation
• Suitable for both new systems and replacements
• Working Temperature: 1°C to 80°C
• Maximum Pressure Rating (Components): 1400kPa
• Pressure Limiting Valve: 500kPa
• Lead Free WaterMark approved
• 100% pressure tested
• Insulation jacket provided as per AS3500.4
• Tested and certified to: WMTS‑012 | AS1357 | AS368
