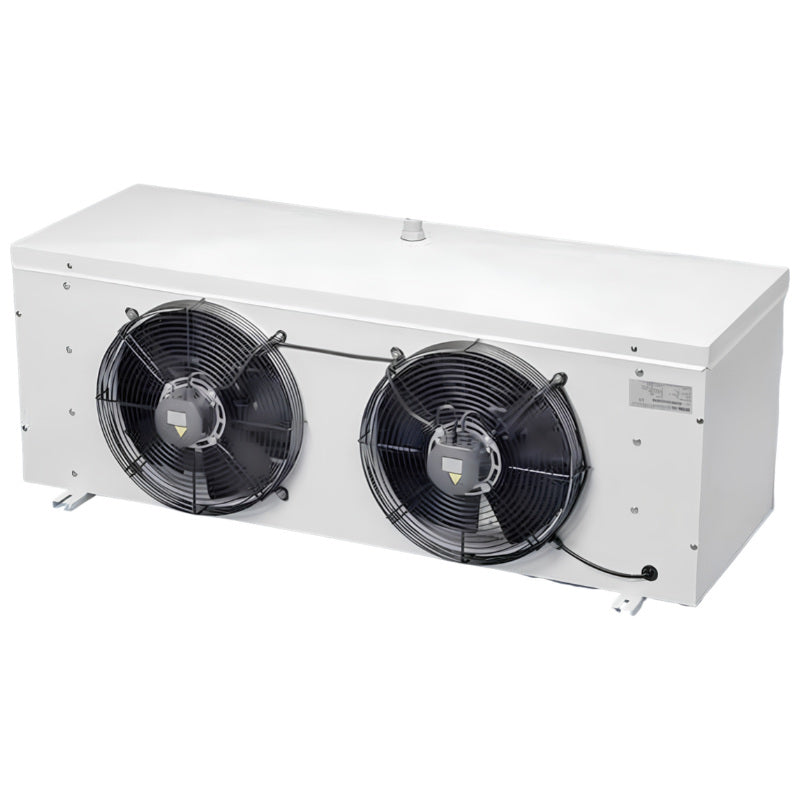

Evaporator Unit 4.3kW (Mid Temp) IDH‑4.3/20

Evaporator Unit 4.3kW (Mid Temp) IDH‑4.3/20

The IDH‑4.3/20 evaporator unit from the ICEAGE IDH Series provides a cooling capacity of 4.3kW and is engineered for mid‑temperature refrigeration applications. With dual 300mm axial fans and a 20m² heat exchange surface, it delivers strong and consistent cooling performance in commercial cold rooms, food storage, and processing environments.

Features:

• Cooling capacity 4.3kW
• Heat exchange surface area 20m²
• Dual 300mm axial fans
• Airflow 3126m³/h
• Fin spacing 4.5mm
• Inlet/outlet pipe size 12mm–16mm
• Defrost heaters 900W (fin) + 900W (tray)
• Dimensions 1280mm × 420mm × 475mm
• Suitable for mid‑temperature cold rooms and food storage applications
